Olympus E-P1 vs E-P2

The Olympus PEN E-P1 and the Olympus PEN E-P2 are two enthusiast cameras that were announced, respectively, in June 2009 and November 2009. Both the E-P1 and the E-P2 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 12.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-P1
versus
Olympus E-P2
Olympus E-P1   Olympus E-P2
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Micro Four Thirds lenses
12.2 MP – Four Thirds sensor 12.2 MP – Four Thirds sensor
720/30p Video 720/30p Video
ISO 100-6,400 ISO 100-6,400
No viewfinder, LCD framing Viewfinder optional
3.0" LCD – 230k dots 3.0" LCD – 230k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3 shutter flaps per second 3 shutter flaps per second
In-body stabilizationIn-body stabilization
300 shots per battery charge300 shots per battery charge
121 x 70 x 36 mm, 355 g 121 x 70 x 36 mm, 355 g
logo
Check E-P1 offers at
ebay.com
logo
Check E-P2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P1 and the Olympus PEN E-P2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Olympus E-P1 and the Olympus E-P2. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

Both cameras are available in three different colors (black, silver, white).

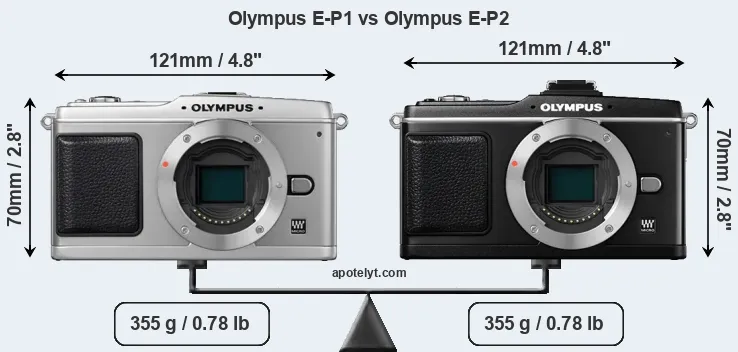

Size Olympus E-P1 vs Olympus E-P2
Compare E-P1 versus E-P2 top

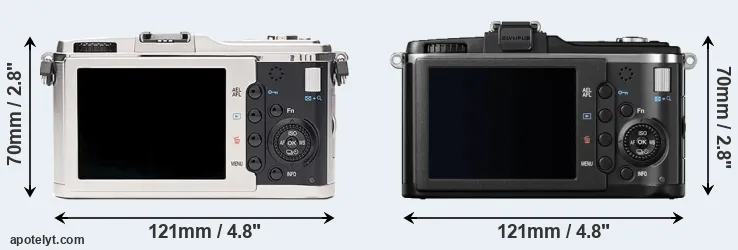

Comparison E-P1 or E-P2 rear

In this particular case, the Olympus E-P1 and the Olympus E-P2 have exactly the same width and height, and, thus, have identically-sized bodies. Moreover, the two cameras also share the same weight. In this context, it is worth noting that neither the E-P1 nor the E-P2 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-P1 121 mm 70 mm 36 mm 355 g 300 n Jun 2009 US$ 799ebay.com
2.

Olympus E-P2 121 mm 70 mm 36 mm 355 g 300 n Nov 2009 US$ 799ebay.com
3.

Olympus E-520 136 mm 92 mm 68 mm 535 g 750 n May 2008 US$ 699ebay.com
4.

Olympus E-620 130 mm 94 mm 60 mm 521 g 500 n Feb 2009 US$ 699ebay.com
5.

Olympus E-P3 122 mm 69 mm 34 mm 369 g 330 n Jun 2011 US$ 799ebay.com
6.

Olympus E-PL1 115 mm 72 mm 42 mm 334 g 290 n Feb 2010 US$ 599ebay.com
7.

Olympus E-PL2 114 mm 72 mm 42 mm 362 g 280 n Jan 2011 US$ 599ebay.com
8.

Olympus E-PL3 110 mm 64 mm 37 mm 313 g 300 n Jun 2011 US$ 599ebay.com
9.

Panasonic G10 124 mm 84 mm 74 mm 388 g 380 n Mar 2010 US$ 499ebay.com
10.

Panasonic GF1 119 mm 71 mm 36 mm 385 g 380 n Sep 2009 US$ 749ebay.com
11.

Panasonic GH1 124 mm 90 mm 45 mm 385 g 300 n Mar 2009 US$ 899ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

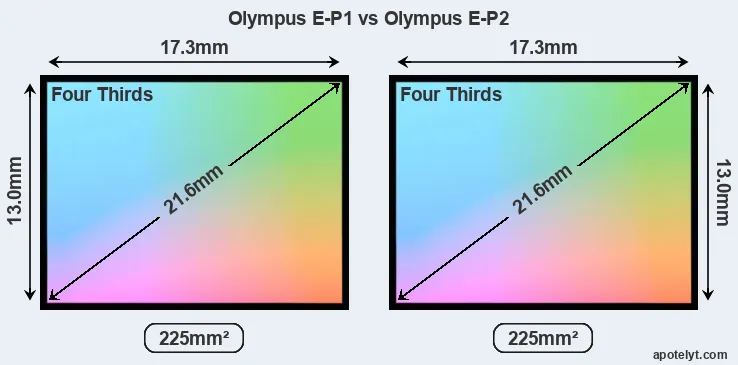

Olympus E-P1 and Olympus E-P2 sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 12.2 megapixels. This similarity in sensor specs implies that both the E-P1 and the E-P2 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-P2 is a somewhat more recent model (by 4 months) than the E-P1, and its sensor might have benefitted from technological advances during this time.

The Olympus PEN E-P1 has a native sensitivity range from ISO 100 to ISO 6400. The Olympus PEN E-P2 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

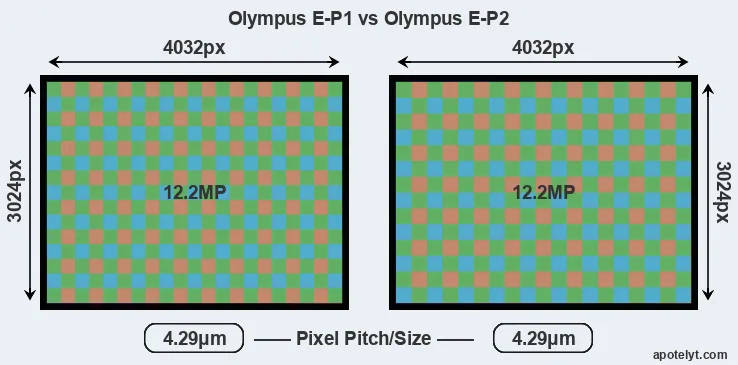

E-P1 versus E-P2 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-P1 Four Thirds 12.2 4032 3024720/30p21.410.453655
2.

Olympus E-P2 Four Thirds 12.2 4032 3024720/30p21.510.450556
3.

Olympus E-520 Four Thirds 10.0 3648 2736none21.410.454855
4.

Olympus E-620 Four Thirds 12.2 4032 3024none21.310.353655
5.

Olympus E-P3 Four Thirds 12.2 4032 30241080/60i20.810.153651
6.

Olympus E-PL1 Four Thirds 12.2 4032 3024720/30p21.510.148754
7.

Olympus E-PL2 Four Thirds 12.2 4032 3024720/30p21.410.257355
8.

Olympus E-PL3 Four Thirds 12.2 4032 30241080/60i20.910.349952
9.

Panasonic G10 Four Thirds 12.0 4000 3000720/30p21.210.141152
10.

Panasonic GF1 Four Thirds 12.0 4000 3000720/30p21.210.351354
11.

Panasonic GH1 Four Thirds 12.0 4000 30001080/24p21.611.677264

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (720/30p).

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The E-P1 and the E-P2 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-P2 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Olympus E-P1 and Olympus E-P2 along with similar information for a selection of comparators.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-P1none n3.0 / 230 fixed n 1/4000s 3.0/s n Y
2.

Olympus E-P2optional n3.0 / 230 fixed n 1/4000s 3.0/s n Y
3.

Olympus E-520optical n2.7 / 215 fixed n 1/4000s 3.5/s Y Y
4.

Olympus E-620optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
5.

Olympus E-P3optional n3.0 / 614 fixed Y 1/4000s 3.0/s Y Y
6.

Olympus E-PL1optional n2.7 / 230 fixed n 1/2000s 3.0/s Y Y
7.

Olympus E-PL2optional n3.0 / 460 fixed n 1/4000s 3.0/s Y Y
8.

Olympus E-PL3optional n3.0 / 460 tilting n 1/4000s 5.5/s n Y
9.

Panasonic G10202 n3.0 / 460 fixed n 1/4000s 2.6/s Y n
10.

Panasonic GF1optional n3.0 / 460 fixed n 1/4000s 3.0/s Y n
11.

Panasonic GH11440 n3.0 / 460 swivel n 1/4000s 3.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the E-P1 and the E-P2 write their files to SDHC cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P1 and Olympus PEN E-P2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-P1Ystereo / ---mini2.0---
2.

Olympus E-P2Ystereo / ---mini2.0---
3.

Olympus E-520Y- / ----2.0---
4.

Olympus E-620Y- / ----2.0---
5.

Olympus E-P3Ystereo / ---mini2.0---
6.

Olympus E-PL1Ystereo / ---mini2.0---
7.

Olympus E-PL2Ystereo / ---mini2.0---
8.

Olympus E-PL3Ystereo / ---mini2.0---
9.

Panasonic G10Ymono / ---mini2.0---
10.

Panasonic GF1Ymono / mono--mini2.0---
11.

Panasonic GH1Ystereo / -Y-mini2.0---

Both the E-P1 and the E-P2 have been discontinued, but can regularly be found used on ebay. The E-P1 was replaced by the Olympus E-P2, while the E-P2 was followed by the Olympus E-P3. Further information on the features and operation of the E-P1 and E-P2 can be found, respectively, in the Olympus E-P1 Manual (free pdf) or the online Olympus E-P2 Manual.

ad

Review summary

So what is the bottom line? Which of the two cameras – the Olympus E-P1 or the Olympus E-P2 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.


Arguments in favor of the Olympus PEN E-P1:

  • More heavily discounted: Has been on the market for longer (launched in June 2009).


Advantages of the Olympus PEN E-P2:

  • More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
  • More modern: Was introduced somewhat (4 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the E-P2 comes out slightly ahead of the E-P1 (2 : 1 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-P1 01:02 E-P2

How about other alternatives? Do the specifications of the Olympus E-P1 and the Olympus E-P2 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-P1 and the E-P2 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-P1..+..66/1004/54.5/5 Jun 2009 US$ 799ebay.com
2.

Olympus E-P23/5+..69/1004/54.5/5 Nov 2009 US$ 799ebay.com
3.

Olympus E-520..87/100..+ +4.5/54.5/5 May 2008 US$ 699ebay.com
4.

Olympus E-6203/588/100..72/1004.5/55/5 Feb 2009 US$ 699ebay.com
5.

Olympus E-P3..83/100..74/1004.5/54.5/5 Jun 2011 US$ 799ebay.com
6.

Olympus E-PL1..86/100..69/1004/54.5/5 Feb 2010 US$ 599ebay.com
7.

Olympus E-PL23/583/100..71/1004.5/54.5/5 Jan 2011 US$ 599ebay.com
8.

Olympus E-PL33/5+ +..72/1004.5/54/5 Jun 2011 US$ 599ebay.com
9.

Panasonic G103/5....70/1004/54/5 Mar 2010 US$ 499ebay.com
10.

Panasonic GF1..85/100..69/1004.5/54.5/5 Sep 2009 US$ 749ebay.com
11.

Panasonic GH1..+ +..72/1004.5/54.5/5 Mar 2009 US$ 899ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check E-P1 offers at
ebay.com
logo
Check E-P2 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Olympus E-P1 vs Olympus E-P2

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-P1 Olympus E-P2
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Micro Four Thirds lenses Micro Four Thirds lenses
    Launch Date June 2009 November 2009
    Launch Price USD 799 USD 799
    Sensor Specs Olympus E-P1 Olympus E-P2
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
    Sensor Area 224.9 mm2 224.9 mm2
    Sensor Diagonal 21.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 12.2 Megapixels 12.2 Megapixels
    Image Resolution 4032 x 3024 pixels 4032 x 3024 pixels
    Pixel Pitch 4.29 μm 4.29 μm
    Pixel Density 5.42 MP/cm2 5.42 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 720/30p Video 720/30p Video
    ISO Setting 100 - 6,400 ISO 100 - 6,400 ISO
    Image Processor TruePic V TruePic V
    DXO Sensor Quality (score) 55 56
    DXO Color Depth (bits) 21.4 21.5
    DXO Dynamic Range (EV) 10.4 10.4
    DXO Low Light (ISO) 536 505
    Screen Specs Olympus E-P1 Olympus E-P2
    Viewfinder Type no viewfinder Viewfinder optional
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 230k dots 230k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Olympus E-P1 Olympus E-P2
    Focus System Contrast-detect AF Contrast-detect AF
    Continuous Shooting 3 shutter flaps/s 3 shutter flaps/s
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDHC cards SDHC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support no no
    Connectivity Specs Olympus E-P1 Olympus E-P2
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Olympus E-P1 Olympus E-P2
    Battery Type Olympus BLS-1 Olympus BLS-1
    Battery Life (CIPA)300 shots per charge300 shots per charge
    Body Dimensions 121 x 70 x 36 mm
    (4.8 x 2.8 x 1.4 in)
    121 x 70 x 36 mm
    (4.8 x 2.8 x 1.4 in)
    Camera Weight 355 g (12.5 oz) 355 g (12.5 oz)
    logo
    Check E-P1 offers at
    ebay.com
    logo
    Check E-P2 offers at
    ebay.com
